Installing a Baxi EcoBlue combi or system boiler No 10 Combustion check

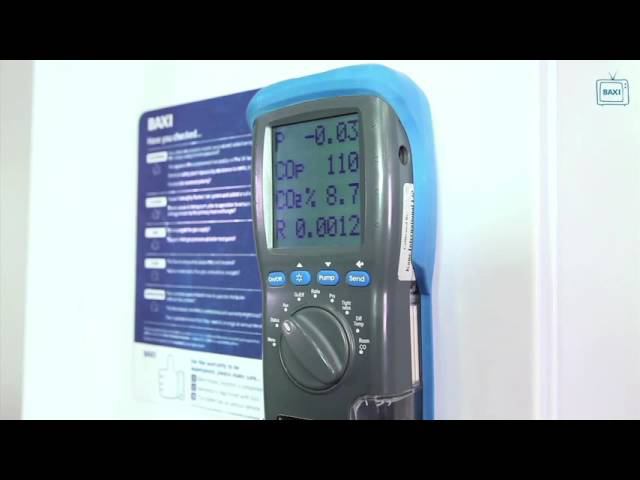

Here we show you how to perform a boiler combustion check. Connect the flue gas analyser and then set the boiler to maximum rate. The gas inlet test pressure point can be easily found on the gas service cock underneath the boiler. The working pressure at the boiler inlet should be at least 17 millibars. Set the boiler to maximum rate and allow the combustion to stabilise. Carry out the Flue Integrity Combustion Check by inserting the analyser probe into the air inlet testing point, allowing the reading to stabilise. A positive check will show a reading of oxygen equal to or greater than 20.6 per cent and carbon dioxide at less than 0.2 per cent. Next, check the Carbon Monoxide and Combustion Ratio while the boiler is still running at maximum rate. Insert the analyser probe into the flue gas test point. Once stabilised, a positive check will show a reading of 8.7 per cent plus or -0.2 per cent. Now set the boiler to the minimum rate and allow the combustion to stabilise. Insert the analyser probe into the flue gas test point, allowing the reading to stabilise. A positive check will show a reading of 8.4, plus or minus 0.2 per cent. That completes the test. Cap off all test points. Complete the Benchmark checklist, recording the Carbon Monoxide and combustion ratings. This video may contain advice, opinions, instructions and statements from Baxi and/or other content and information providers. This content is intended to be used as a general guideline and for information purposes only. You use the video and content at your own risk. Whilst we will endeavour to keep the information up to date, we strongly urge you to consult a professional or some other authority in the appropriate field before using any of the content. To the maximum extent permitted by law, Baxi makes no representations, warranties or conditions of any kind, express or implied, as to the information or content included in the video. Baxi also expressly disclaims all representations, warranties or conditions of any kind, whether express or implied, including but not limited to the implied representations, warranties or conditions of fitness for a particular purpose and those arising from a course of dealing or usage. Baxi does not accept liability for any claim, loss, demands or damages of any kind whatsoever (whether such claims, loss, demands or damages were foreseeable, known or otherwise) arising out of or in connection with the use of the information, content or materials included in this video, including without limitation, indirect or consequential loss or damage, and whether or not advised of the possibility of such claim, loss demand or damages and whether arising in tort (including negligence), contract or otherwise. September 2014 *Baxi is a trading division of Baxi Heating UK Limited, whose registered office is at Brooks House, Coventry Road, Warwick CV34 4LL
